Q35Y-25

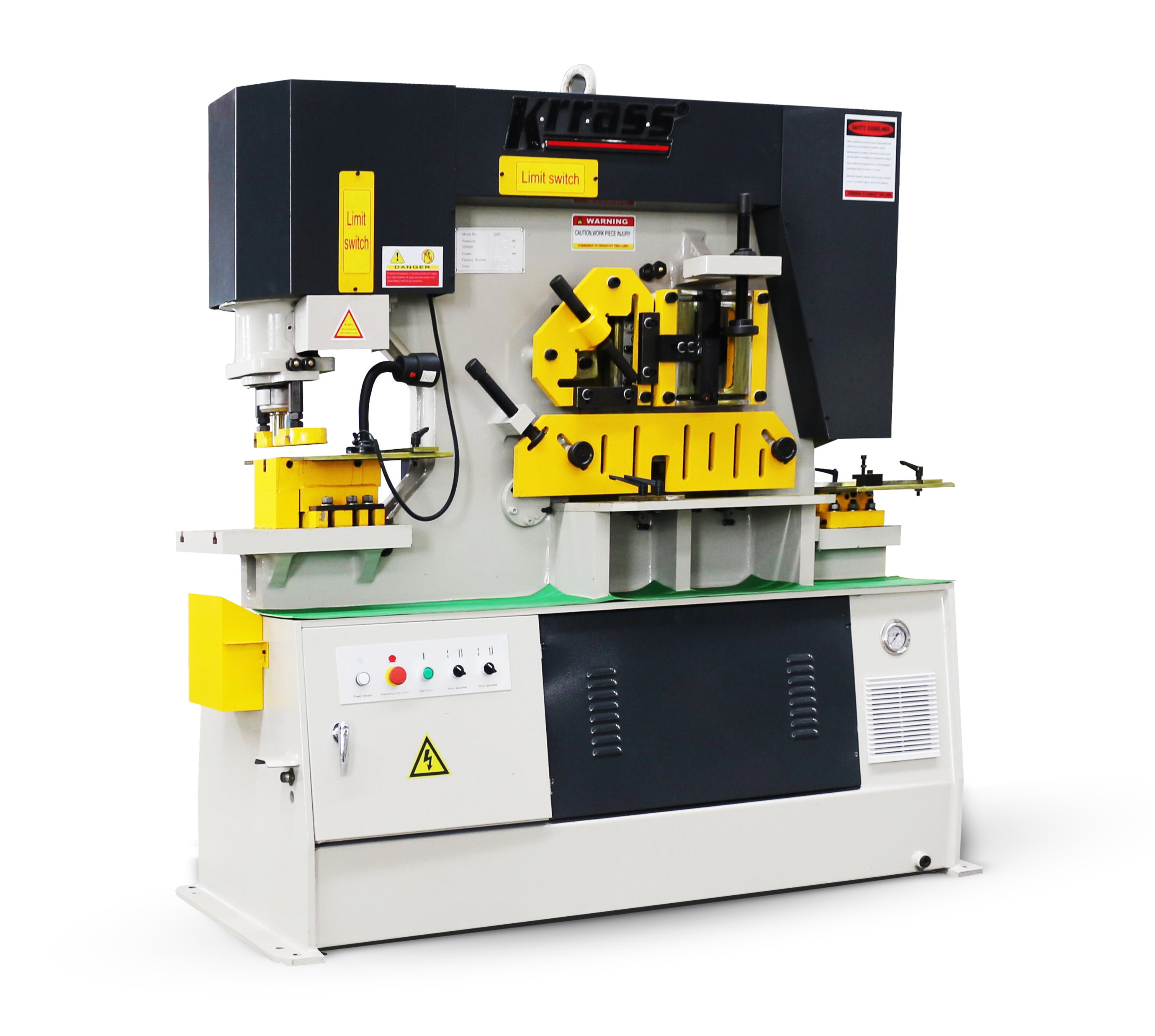

The Q35Y-25 Hydraulic Ironworker Machine is a multi-functional machine designed for cutting, punching, notching, and bending of various metal profiles. It features a punching pressure of 120 tons and a throat depth of 400 mm. The machine can handle a maximum punching diameter of 35 mm with a thickness of 25 mm. It is equipped with a motor power of 11 kW and has a total weight of 5200 kg.
Technical Specifications
| Specification | Detail |
|---|---|
| Punching Pressure | 120 Tons |
| Throat Depth | 400 mm |
| Max. Punching Diameter | 35 mm |
| Max. Punching Thickness | 25 mm |
| Angle Cutting | 160x160x14 mm |
| Motor Power | 11 kW |
| Machine Weight | 5200 kg |
| Machine Dimensions (LxWxH) | 2355x960x2090 mm |
