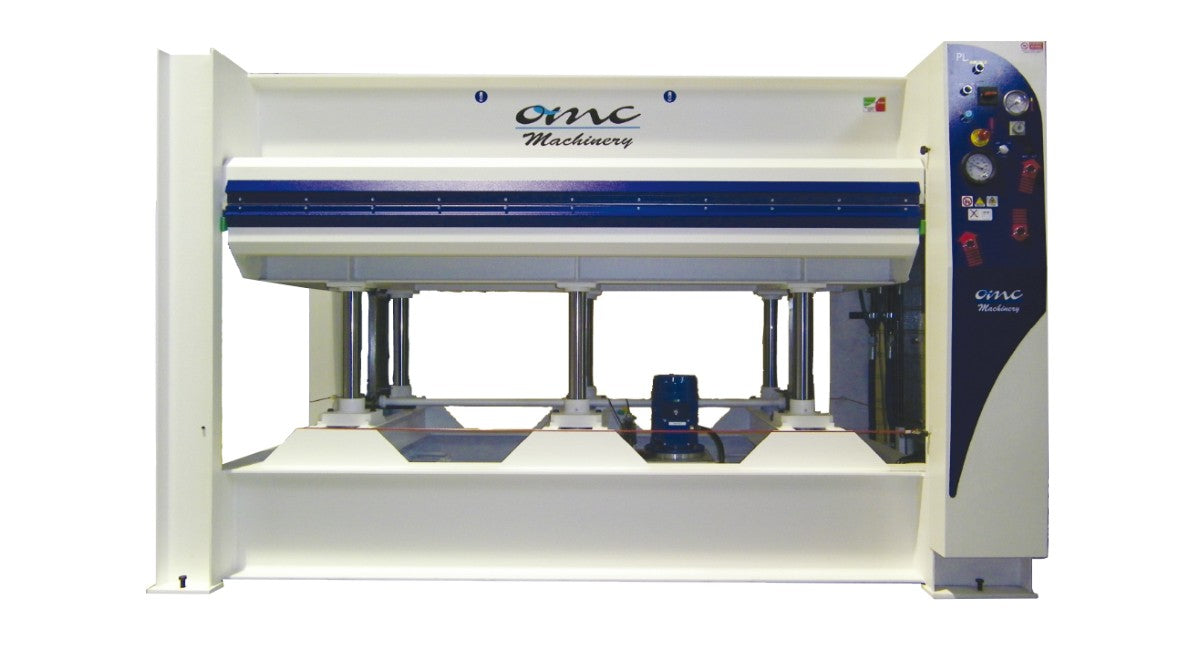

70T (1300x3000)
The OMC - 70T (1300x3000) press is a cutting-edge hydraulic press designed for high-precision pressing operations with dimensions of 3000x1300 mm. It features an upstroke design for efficient material handling and is equipped with assembled platens with coil and aluminum covering for optimal heat distribution. The press delivers a total thrust of 70 tons, supported by six cylinders, ensuring uniform pressure across the entire surface. Ideal for a wide range of applications, this model is built for durability, performance, and safety, meeting the highest industry standards.
Technical Specifications
| Specification | Detail |
|---|---|
| Platens Dimensions | 3000x1300 mm |
| Stroke | 400 mm |
| Type of Stroke | Upstroke design |
| Type of Platens | Assembled platens with coil and aluminum covering |
| Daylights | N. 2 daylights 180 mm |
| Total Thrust | 70 ton |
| Pressing Cylinders | N° 6 cylinders ø 70 mm |
| Specific Pressure | 179 kg/cm² on 100% of the surface |
| Heating System | Oil Boiler 18 kW, max temperature 120°C |
| Power Supply | 400V 50Hz 3ph |
| Safety Features | Emergency Button, Two Hand control, Safety cable |
| Compliance | CE norms |
