JHV-550

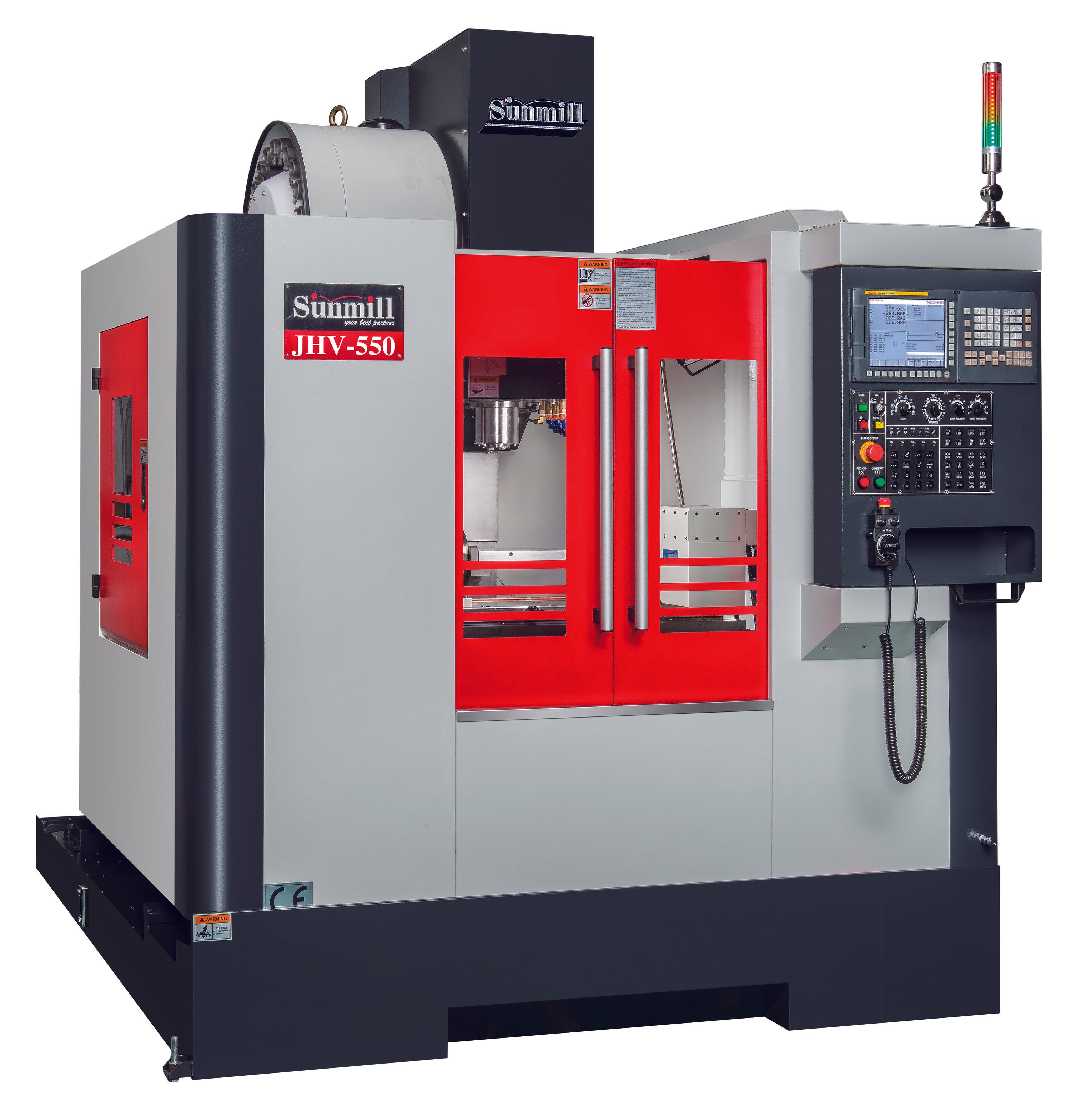

The JHV-550 Linear Guideway CNC Machine is designed for precision and heavy-duty machining. Featuring a robust Meehanite cast iron construction, it offers superior tensile strength, wear resistance, and dimensional stability. Its pre-tensioned ballscrews on three axes eliminate backlash, ensuring exceptional accuracy and reduced thermal growth. The machine includes a spindle air blast system and oil cooling device for optimal spindle lifespan and accuracy, while the integrated Finite Element Analysis guarantees long-term stability.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | JHV-550 |
| Travel (X, Y, Z Axes) | 550 × 400 × 460 mm |
| Table Area | 650 × 410 mm |
| Max Table Load | 250 kg |
| T-slot (No. × Width × Pitch) | 3 × 14 mm × 100 mm |
| Spindle Taper | BT-40 |
| Spindle Speed (Belt Type) | 10,000 RPM |
| Spindle Speed (Direct Type, Opt.) | 10,000 / 12,000 / 15,000 RPM |
| Spindle Motor (Standard) | 7.5 / 11 kW (β8i) |
| Spindle Motor (Optional) | 5.5 / 7.5 kW (α6i) |
| Spindle Cooling | Oil Cooler |
| Rapid Traverse (X, Y, Z Axes) | 36 m/min |
| Cutting Feed Rate | 1 - 15,000 mm/min |
| Servo Motor (X/Y/Z Fanuc) | 1.2 / 1.2 / 3.0 kW |
| Automatic Tool Changer (ATC) | Arm Type |
| Tool Magazine Capacity | 24 tools |
| Max Tool Diameter | 75 mm (adjacent), 150 mm (non-adjacent) |
| Max Tool Length | 200 mm |
| Max Tool Weight | 7 kg |
| Tool Selection | Random |
| Power Consumption | 20 KVA |
| Voltage | 220V, 3 Phase |
| Machine Dimensions (L × W × H) | 2400 × 2450 × 2650 mm |
| Machine Weight | 3400 kg |
| Shipping Container | 40'HQ |
