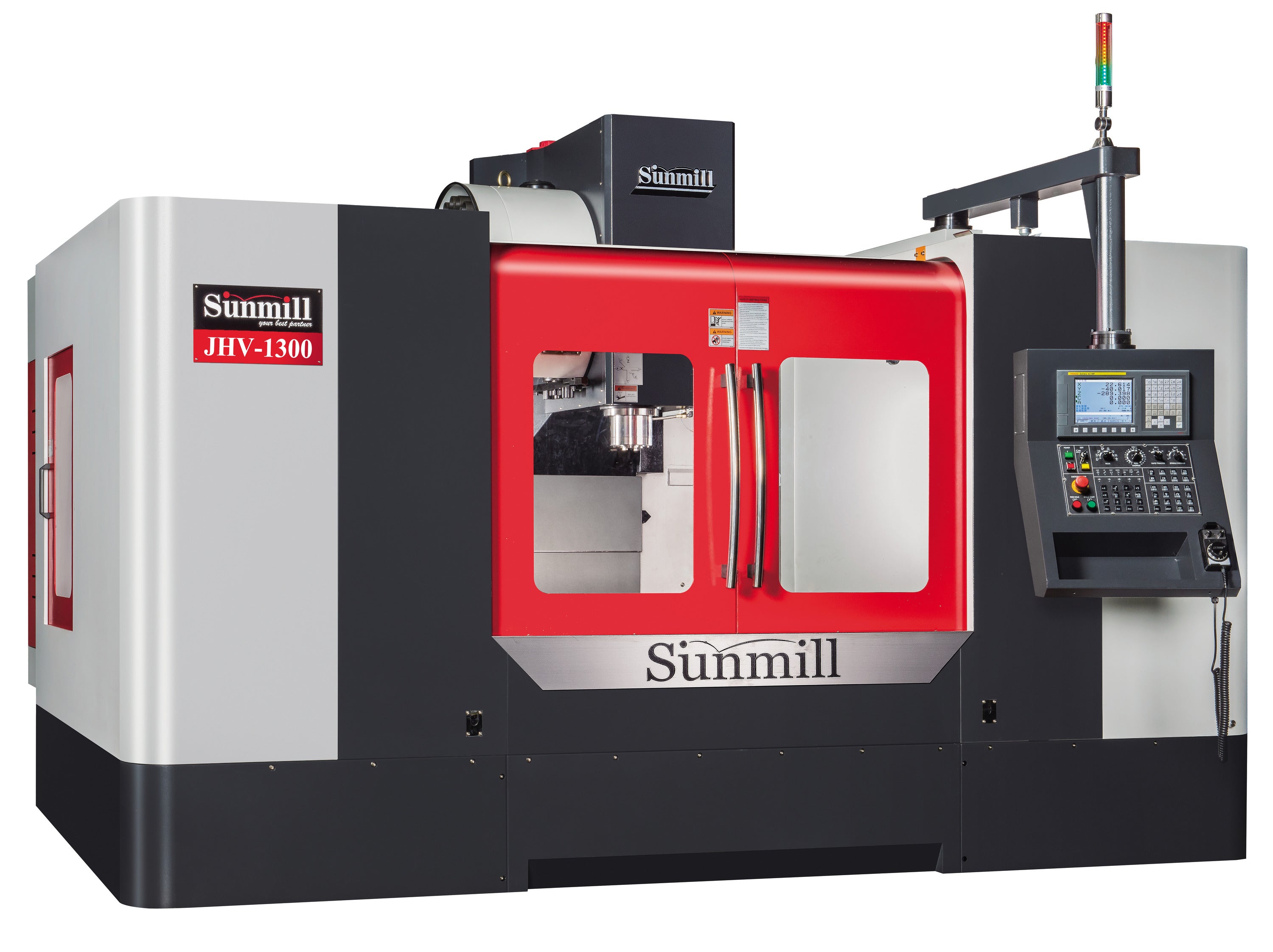

JHV-1300
The JHV-1300 Linear Guideway is a high-precision machining tool with 1300x750x700mm travel dimensions. Built with Meehanite cast iron for durability and stability, it features roller linear guideways for heavy load support and precise positioning. Equipped with an advanced spindle cooling system and upgraded 7 kW Z-axis servo motor for high-speed precision, it is ideal for demanding industrial applications.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | JHV-1300 |
| Travel (X, Y, Z Axes) | 1300 × 750 × 700 mm |
| Optional Z Axis Travel | 850 mm |
| Table Size | 1350 × 750 mm |
| Max Table Loading | 1000 kg |
| T-slot (No. × Width × Pitch) | 5 × 18 mm × 150 mm |
| Spindle Taper | BT-40 |
| Spindle Speed (Belt Type) | 10,000 RPM |
| Spindle Speed (Direct Type, Opt.) | 10,000 / 12,000 / 15,000 RPM |
| Spindle Motor (Standard) | 11 / 15 kW (α12i) |
| Spindle Motor (Optional) | 15 / 18.5 kW (α15i or αT15i) |
| Spindle Cooling | Oil Cooler |
| Rapid Traverse (X, Y, Z Axes) | 24 / 24 / 24 m/min |
| Cutting Feed Rate | 1 - 15,000 mm/min |
| Servo Motor (X/Y/Z Fanuc) | 4.5 / 4.5 / 7.0 kW |
| Automatic Tool Changer (ATC) | Arm Type |
| Tool Magazine Capacity | 24 tools |
| Max Tool Diameter / Without Adjacent Tool | 75 / 150 mm |
| Max Tool Length | 300 mm |
| Max Tool Weight | 7 kg |
| Tool Selection | Random |
| Power Consumption | 30 KVA (40 KVA optional) |
| Voltage | 220V, 3 Phase |
| Machine Dimensions (L × W × H) | 4680 × 4070 × 2970 mm |
| Machine Weight | 9000 kg |
| Shipping Container | 40'HQ |
