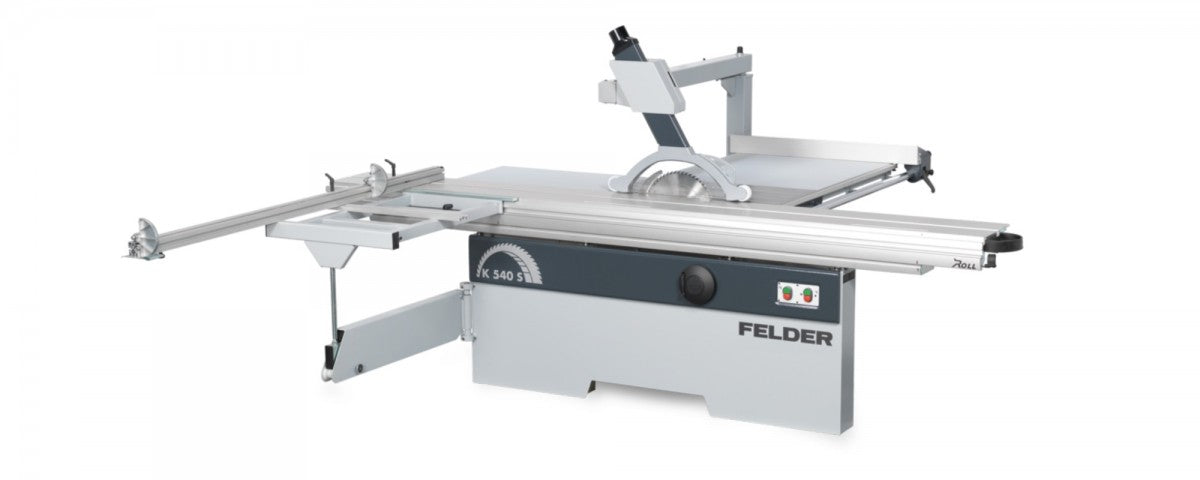

K540S
The Felder K540S is a robust sliding table panel saw machine featuring a tilting saw blade for precise cuts from 90° to 45°, achieving a maximum cutting height of 140 mm with a 400 mm saw blade at 4000 rpm. This model offers a 6-year warranty for its sliding table and tilting spindle, underscoring its reliability and durability. Equipped with a 7.5 HP (5.5 kW) motor, electronic scoring unit, micro-adjustable rip fence, and a rip capacity of 1250 mm, the K540S is designed for high performance and versatility in woodworking projects.
Technical Specifications
| Specification | Detail |
|---|---|
| Electrical Setup | 3x 400 V; 50 Hz |
| Motor Power | 7.5 HP (5.5 kW) |
| Maximum Cutting Height | 140 mm with 400 mm saw blade |
| Saw and Scoring Unit | Tilting saw blade (90°–45°), Electronic scoring unit |
| Rip Capacity | 1250 mm |
| Sliding Table | XL cutting length 3200 mm anodised |
| Outrigger Table | 1300 mm for 1300–3200 mm sliding tables |
| Working Height | 890 mm |
| Extractor Connection Port Diameter | 120/80 mm |
| Weight | 680 kg |
