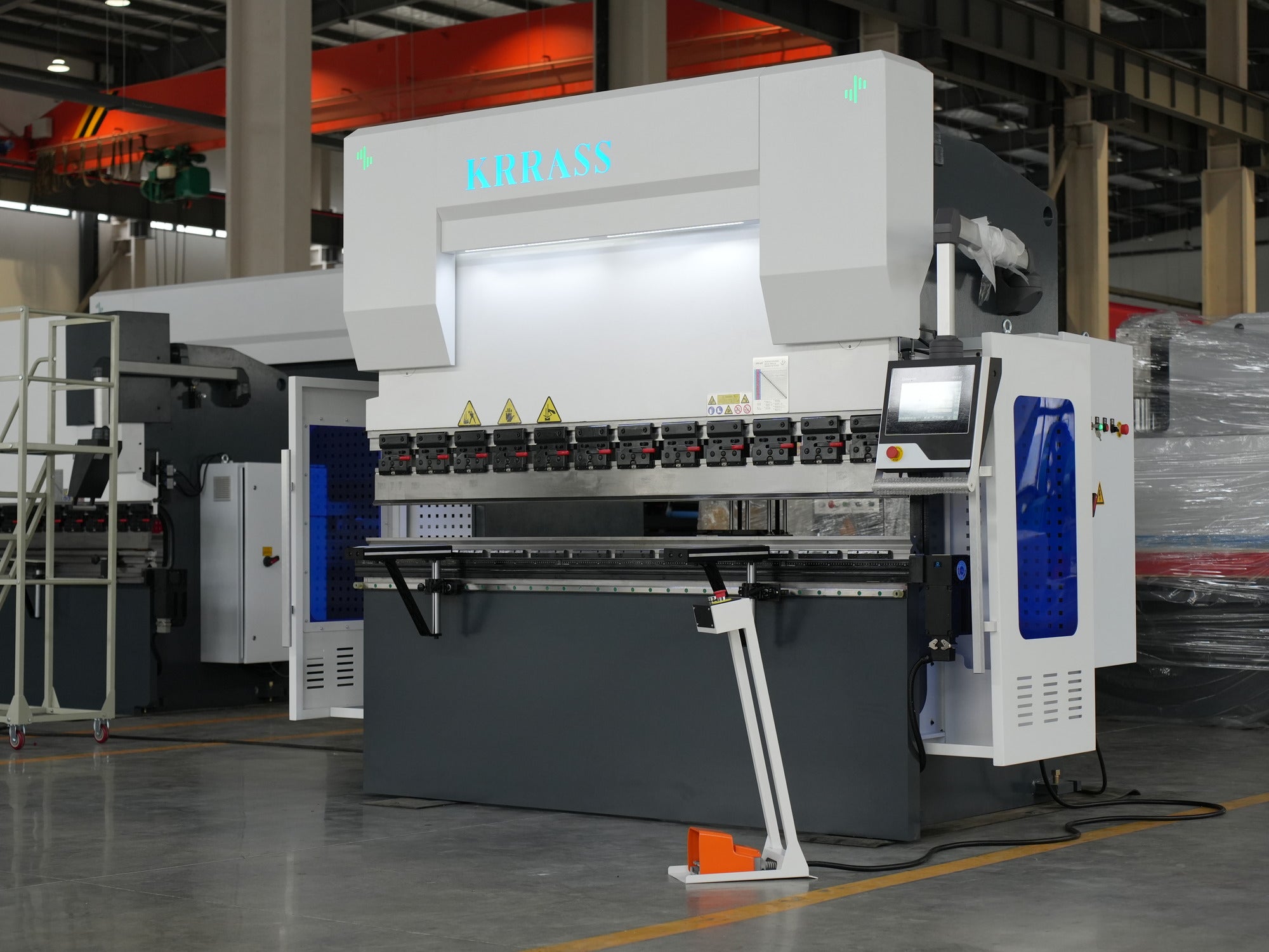

CNC HYDRALIC PRESS BRAKE 175T
The CNC Hydraulic Press Brake MB8-175T3200 DA53T is designed for precision bending of metal sheets. It features a 4+1 axis configuration for Y1, Y2, XR, and crowning, ensuring high bending accuracy. The machine is equipped with the latest high-frequency hydraulic control technology and a heat-treated rack for optimal rigidity. The DA53T controller allows for easy operation and selection of suitable dies for complex shapes.
Technical Specifications
| Specification | Detail |
|---|---|
| Bending Pressure | 1750 kN |
| Bending Length | 3200 mm |
| Column Distance | 2700 mm |
| Throat Depth | 410 mm |
| Slider Stroke | 200 mm |
| Max. Opening Height | 570 mm |
| Y1/Y2-axis Down Speed | 160 mm/sec |
| Y1/Y2-axis Back Stroke Speed | 140 mm/sec |
| X-axis Max. Distance | 600 mm |
| Main Motor | 11 kW |
| Overall Dimensions (LxWxH) | 4050x1800x2730 mm |
| Weight | 10.2 T |
